Product Name：Dual Glass Solar Module

Update Time：2019-4-24 9:06:21

Product Details

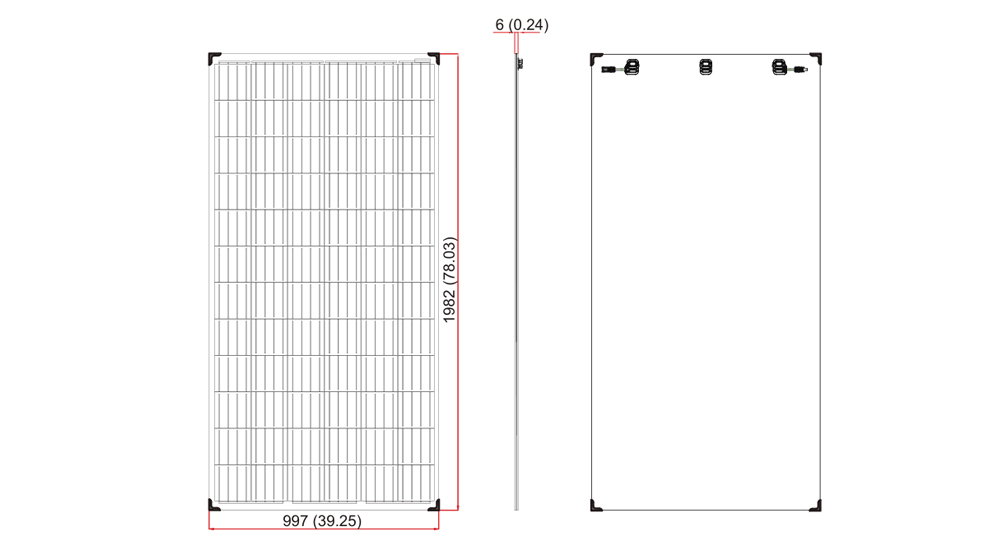

drawings

The packing way

ark

Electrical performance parameter

The component models	JY325P6-Da-5	JY320P6-Da-5	JY315P6-Da-5
The most powerful	325W	320W	315W
The efficiency of the component	16.45%	16.19%	15.94%
Maximum operating voltage	37.28V	37.13V	36.81V
Maximum operating current	8.72A	8.62A	8.56A
The open circuit voltage	46.31V	45.94V	45.75V
Short circuit current	9.28A	9.24A	9.12A
Working temperature	-40~+85℃
Output power tolerance	0 to +5W
Maximum system voltage	1500V DC
NOCT	45±2℃
Maximum fusing current	20A

The mechanical parameters

The temperature parameter

Temperature coefficient of short circuit current	0.04%/℃
Temperature coefficient of open circuit voltage	-0.34%/℃
Maximum power temperature coefficient	-0.41%/℃
*All rights reserved. Specifications are subject to change without prior notice。

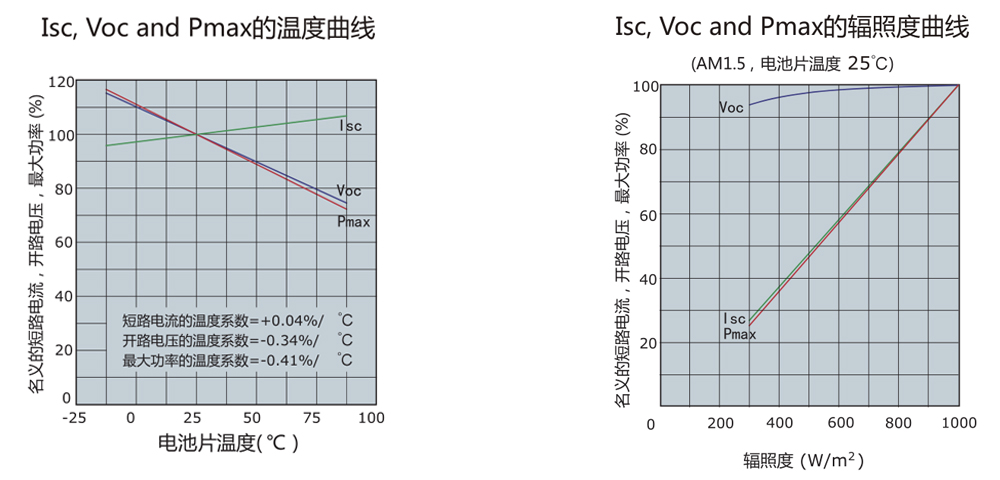

Electrical performance curve
